Laser welding and cutting integrated machine
Laser welding and cutting integrated machine 1500W/2000W
Model
SLC-W-1500W/2000W
Laser power
1500W/2000W
Working mode
compatible with cleaning, welding, and cutting, switchable
Cable length
10m
Laser wavelength
1080nm
Cooling method
water cooling
Overall weight
180kg
Gun head weight
approximately 2kg
Case size
L900mm x W650mm x H1200mm
Supply voltage
AC 220 ± 10% V
Mains frequency
50 Hz
Power consumption @25℃
< 8kW/< 10kW
Supply pressure
0.4MPa, clean compressed air with water and oil removed
Online consultation
Phone Number:
+8617343354890
Laser welding and cutting integrated machine 1500W/2000W
Laser welding and cutting integrated machine 1500W/2000W
Laser welding and cutting integrated machine 1500W/2000W
Laser welding and cutting integrated machine 1500W/2000W
Laser welding and cutting integrated machine 1500W/2000W
Laser welding and cutting integrated machine 1500W/2000W
Application area

The cleaning function of this equipment is mainly used for cleaning various dirt such as black ash, oil stains, and scale on the surface of parts before and after welding; The welding function is mainly aimed at welding thin-walled materials and precision parts, which can achieve spot welding, butt welding, overlay welding, etc; The cutting function is mainly aimed at thin-walled materials, used for cutting thin plates. This device can be used in many fields such as aerospace, rail transit, automotive manufacturing, marine vessels, electronic microfabrication, food processing, stainless steel and aluminum alloy products, mold processing, etc.

Sample display

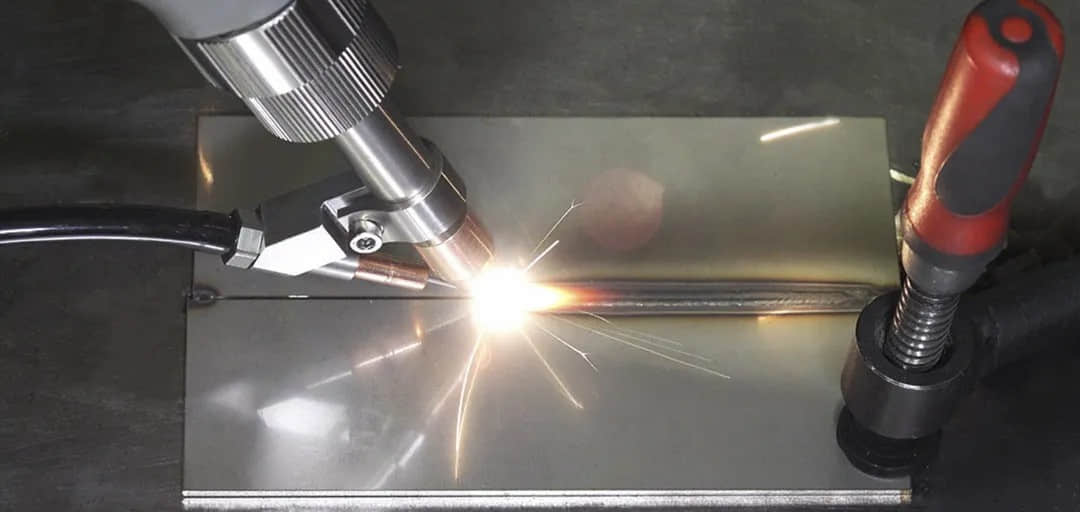

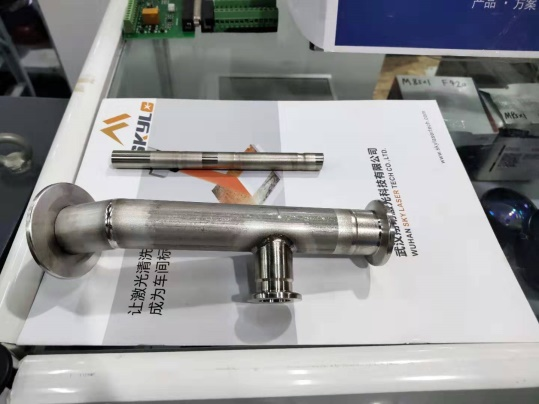

weld

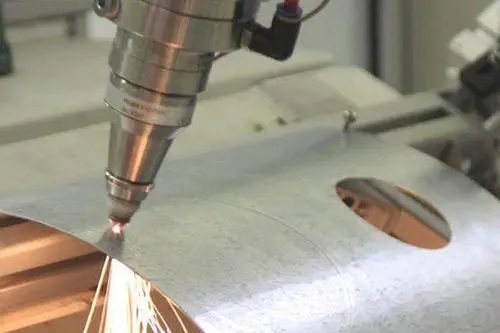

slicing
clean




<
